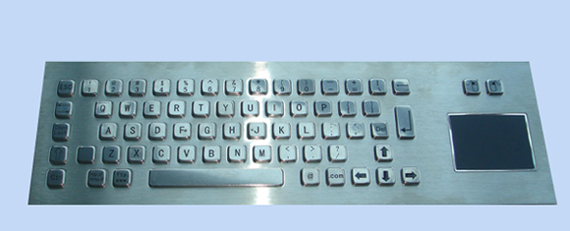

Keyboards GM-500 Key Features: 1) 64 keys,with integrated touchpad;
2) Panel mount;
3) Protruding full travel(2.0mm)keys with etched or laser engraved graphics, excellent tactile feel
4) Specially designed to operate in harsh environments, making them ideal for the demanding applications in industrial environments.
5) Built from stainless steel,high vandal-proof.
6) Dust-proof and liquid-proof, meet IP65 requirement
7) PS/2 or USB interface, easy to plug into the computers directly
8) Customizable
Specifications(Model No:F65-PC45)
Material
- Front panel & Keys: Brushed stainless steel - Back panel: Aluminum alloy - Key cap: Protruding full travel key (2.0mm) with etched or laser engraved graphics - Touchpad cover: Composite Electrical Data - Power supply voltage: DC 5 V ±5% - Current rating: 20 mA - Interface: USB or PS2 - EMC compliant. Emission: EN 50081-1 Immunity: EN 50082-1 - FCC: part 15, class B - Safety: EN 60950,CE,UL compliant Environmental Characteristics - Operating temperature: -20°C to + 60°C - Storage temperature: - 40°C to + 80°C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40°C: 21 days, IEC 60512-6 - Dry heat test at + 85°C: 10 days, IEC 60512-6 Mechanical Data - Actuation force for key 14x14 mm: 2.5~5.0N - Actuation force for key 14x28 mm: 5~10N - Key travel: 2.0mm - Lifetime (cycles): min 2,000,000 actuations - Sealing protection: IP65/NEMA4X from the front - Vibration resistance: 5 Hz – 200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4 Touchpad - Power supply voltage: 5 VDC ±10% - Current rating (active mode): 17 mA - Interface: PS2 or USB - X/Y position sensing resolution: 40 counts/mm - X/Y position reporting: Relative - Tracking speed: Maximum 1,016 m/sec Operation system - PS2: Win NT4, 98SE, 98ME, 2000,XP - USB: Win 98SE, 98ME, 2000,XP, Mac OS9 / OSX Weight and dimension - Weight: 1.8 kg - Dimension:Front panel: 400.0x124.0x22.2mm |
